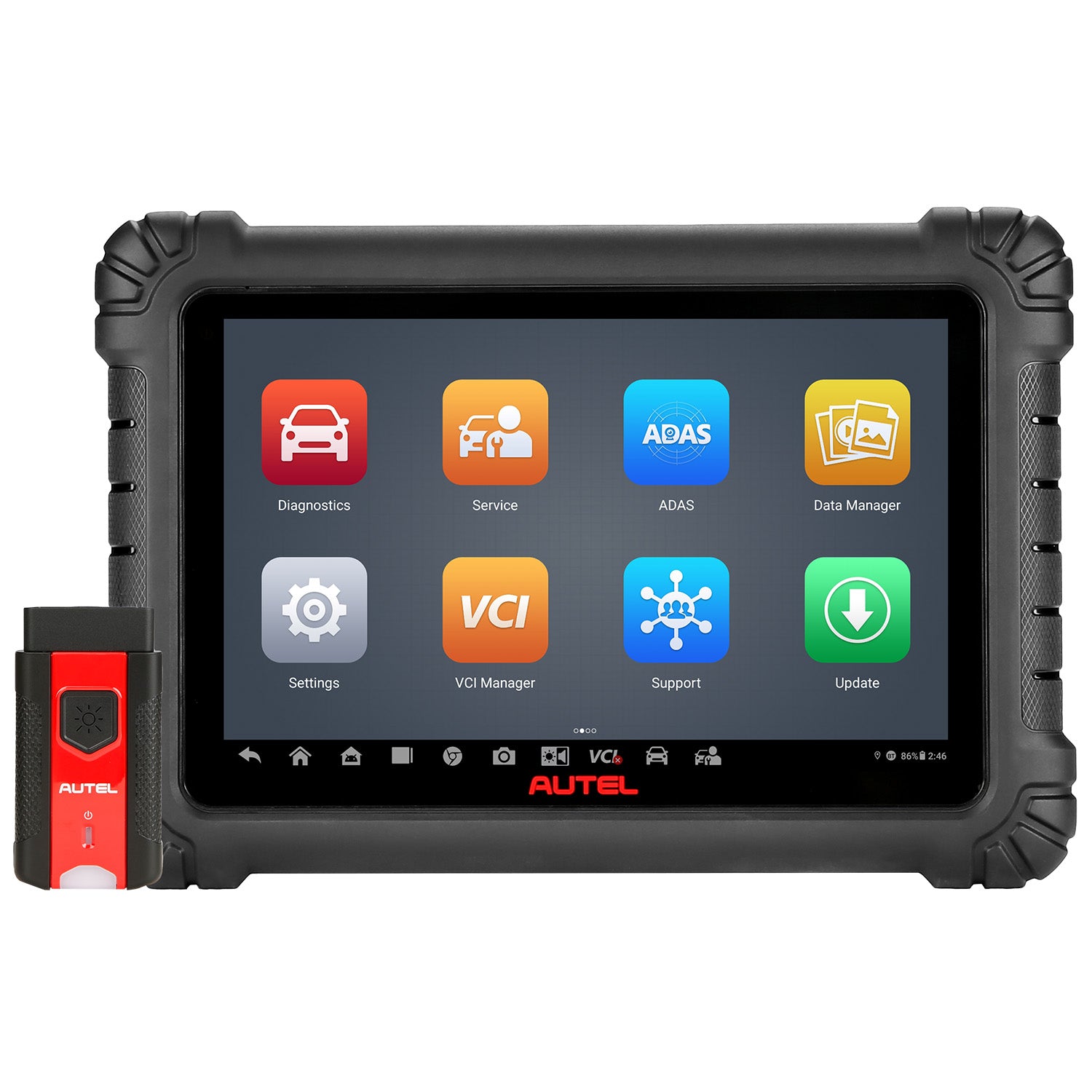

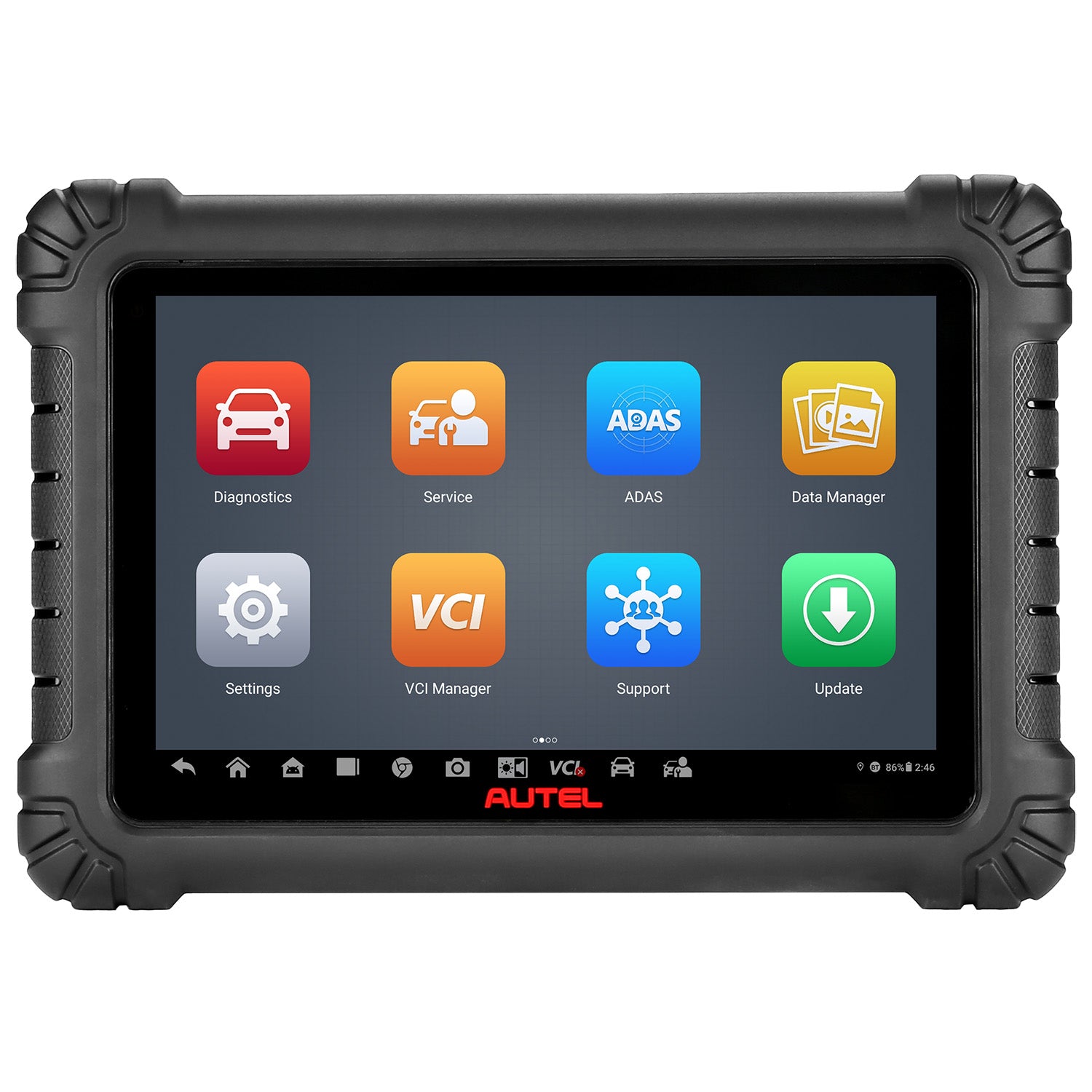

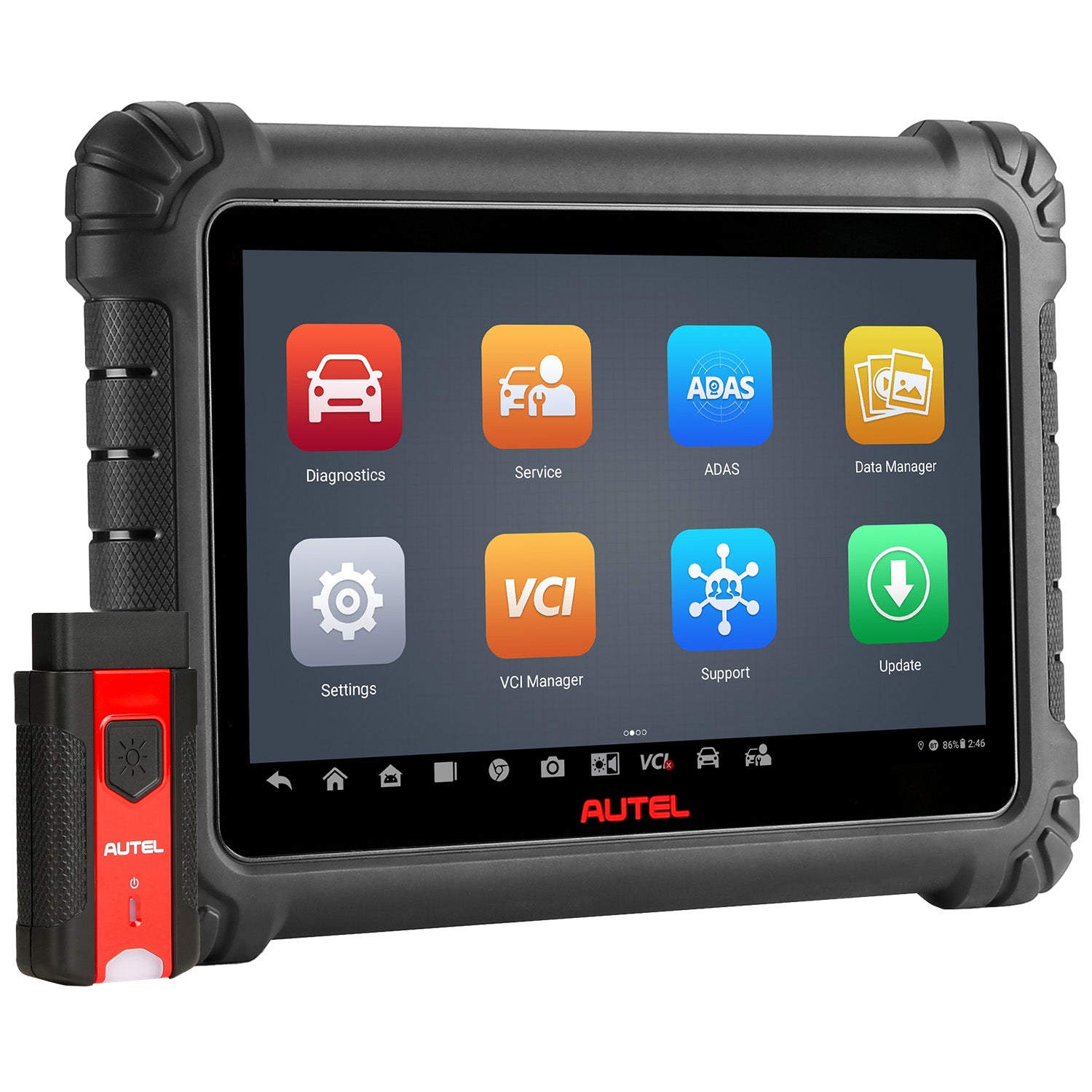

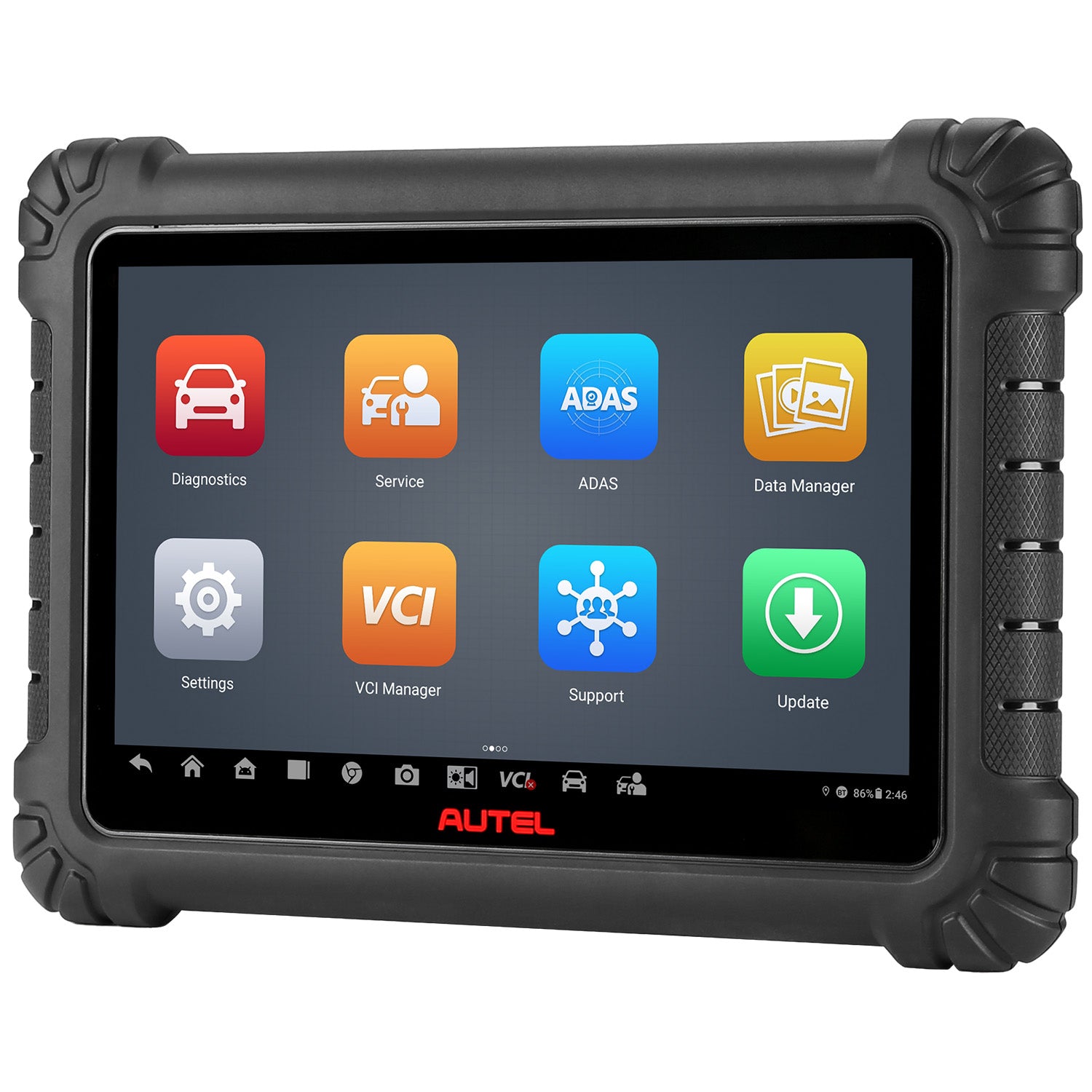

The Autel MaxiSYS MS906MAX is a cutting-edge diagnostic tablet for professional technicians and mechanics. Featuring a responsive 10.1-inch high-resolution touchscreen display, the MS906MAX runs on Android 10 and is powered by an octa-core processor for exceptional performance. With 4GB RAM and 128GB internal storage, this tool ensures fast processing and seamless software access.
The MS906MAX supports all-system diagnostics, allowing you to read and clear codes, view live data, perform active tests, and access 40+ service functions. Its extensive coverage of U.S., Asian, and European vehicles and advanced bidirectional communication makes it ideal for tackling complex repairs. Key features like AutoScan 2.0, coding, and adaptations streamline your workflow, while frequent software updates ensure you’re always ahead of industry changes.

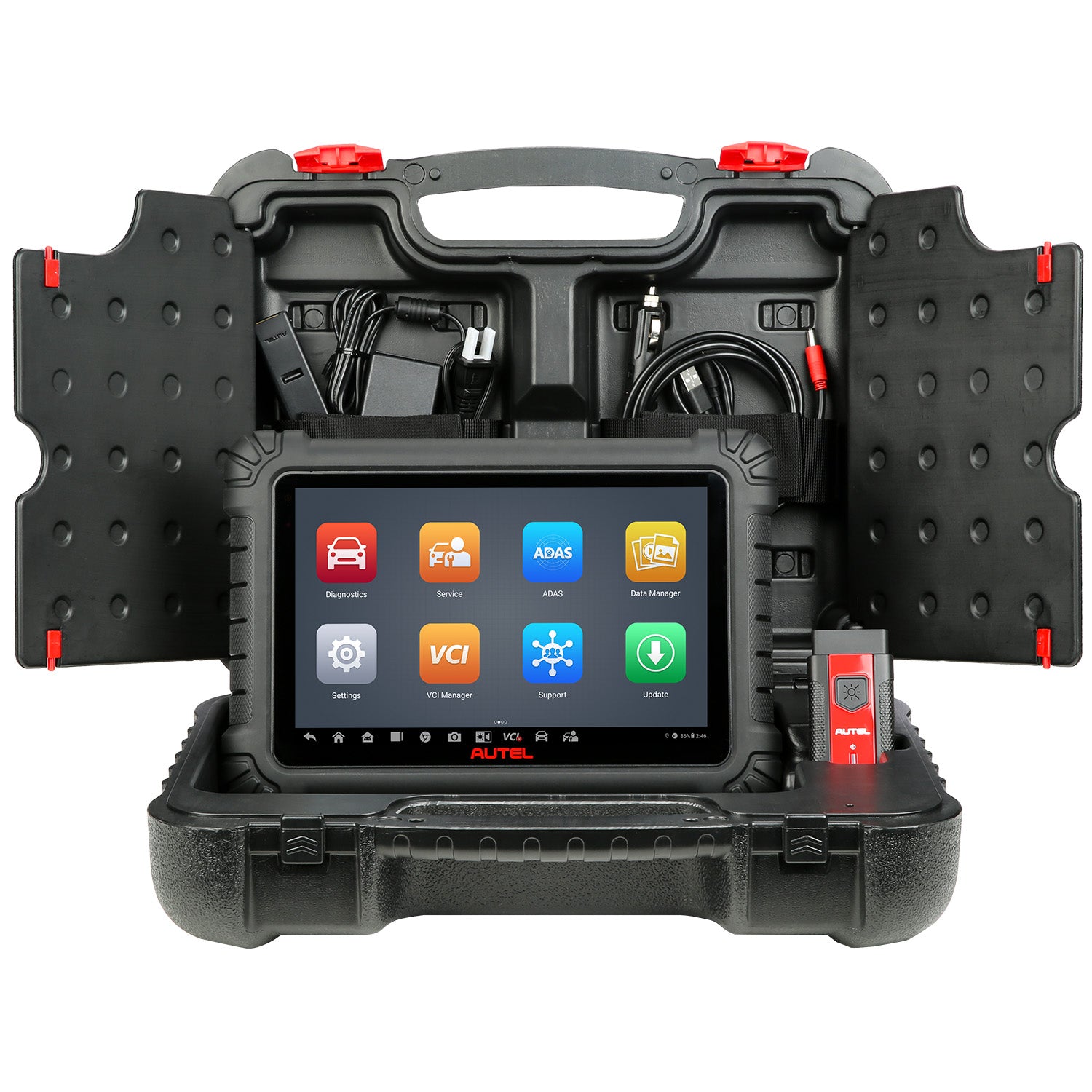

The package includes the MaxiVCI V200 for seamless connectivity and protocol support, a 13MP rear camera for capturing vehicle details, and compatibility with optional tools like a battery tester and video scope. Backed by a one-year free software update and technical support, the MS906MAX sets the bar for professional diagnostic solutions.
Features and Benefits
Optimal Performance
✔︎ 10.1” high-resolution touchscreen display.
✔︎ Android 10 OS and octa-core processor for fast diagnostics.
✔︎ 4GB RAM and 128GB storage for quicker data processing.
Advanced Diagnostics
✔︎ All-system scanning for U.S., Asian, and European vehicles.
✔︎ OE-level diagnostics with bi-directional controls.
✔︎ 40+ service functions, including adaptations and coding.
Ease of Use
✔︎ AutoScan 2.0 for quick system navigation.
✔︎ Frequent software updates to stay up-to-date with the latest protocols.
✔︎ Share reports easily via email or text.
Additional Tools
✔︎ Compatibility with battery testers and inspection cameras.
✔︎ Includes MaxiVCI V200 for vehicle protocol support
Specification
| Operating System | Android 10 |
| Processor | Octa-core Processor |
| Memory | 4 GB RAM & 128 GB On-board Memory |
| Battery | 11600 mAh 3.85 V Lithium-polymer Battery |
| Display | 10.1-inch LCD Capacitive Touchscreen with 1920 x 1200 Resolution |
| Camera (rear) | 13 MP |
| Connectivity | Wi-Fi (802.11 a/b/g/n/ac) BT 5.0 (BR/EDR + BLE) GPS USB 2.0 (Two USB Host Type A, one Mini USB) SD Card (Support up to 256 GB) |
| Audio Input/Output | Microphone Dual Speakers 3-band or 4-band 3.5 mm Headset Jack |
| Operating Temp | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temp | -10 °C to 60 °C (14 °F to 140 °F) |
| Protocols | ISO13400, CAN FD, PLC J2497, ISO-15765, SAE-J1939, ISO- 14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO- 11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAEJ2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
