Autel MaxiSys Ultra
Product Attachments

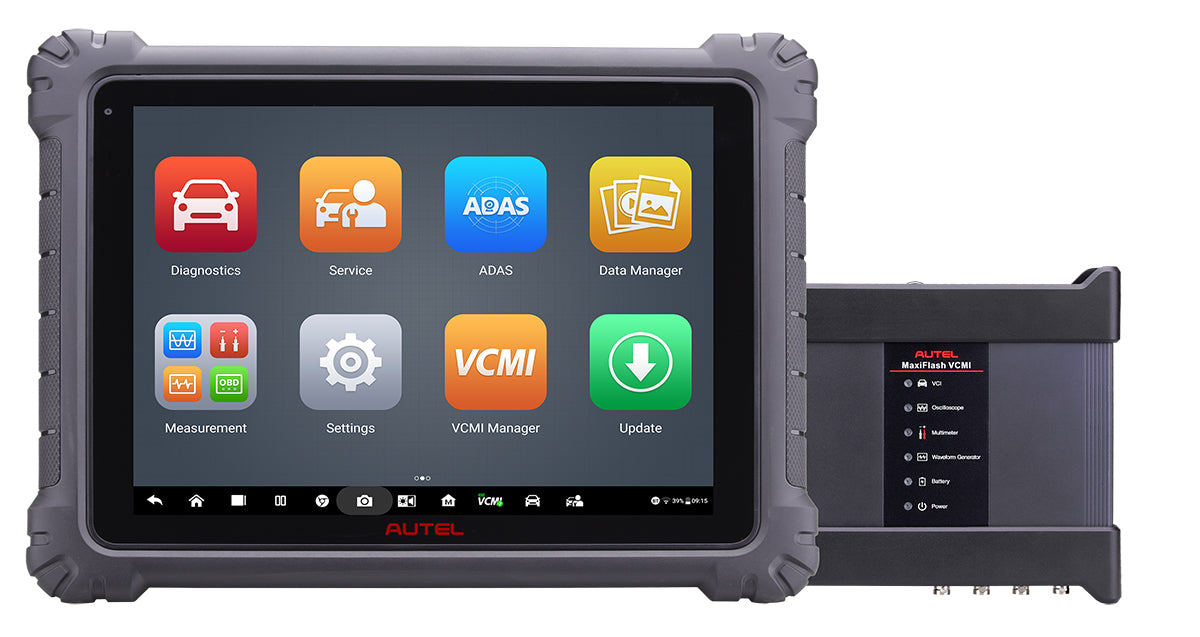

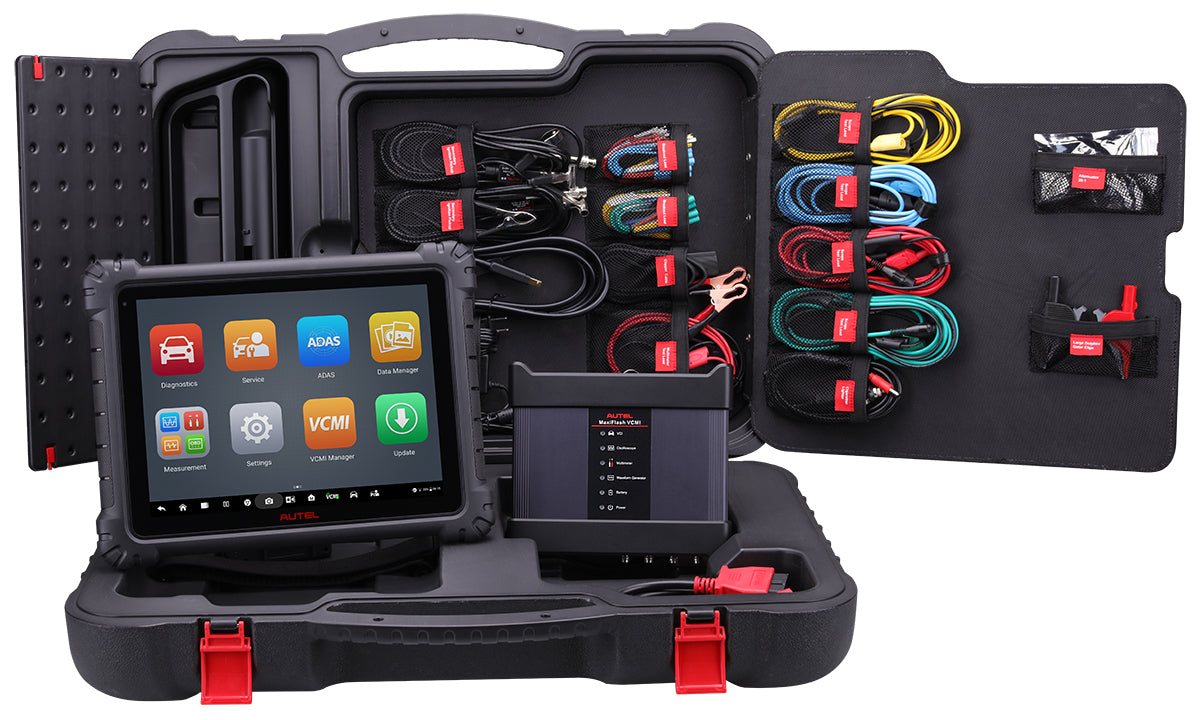

The Autel MaxiSYS Ultra is built for top-tier diagnostic and repair performance. It combines OE-level diagnostics, ECU programming, and Intelligent Diagnostics in a rugged, shop-ready 13” tablet. With an octa-core processor, 256GB storage, and dual Wi-Fi, the Ultra provides smooth multitasking and lightning-fast scan times.
Paired with the powerful VCMI (Vehicle Communication and Measurement Interface), the Ultra supports J2534, RP1210, D-PDU, CAN FD, and DoIP protocols. It includes a 4-channel oscilloscope, multimeter, waveform generator, and CAN BUS tester—all in one device.
Technicians can use Repair Assist, TSB searches, and guided test plans to streamline diagnostics based on DTCs. The topology mapping view gives a full picture of all system modules, color-coded by status, making vehicle-wide diagnostics fast and visual.
Key Features & Benefits
Intelligent Diagnostics & Repair Guidance
✔︎ DTC-based test plans, OE repair procedures, TSB access, and MaxiFix community tips.
All-in-One 5-in-1 VCMI Module
✔︎ Combines J2534, D-PDU, RP1210, and CAN FD/DoIP protocols.
✔︎ Also functions as a 4-channel oscilloscope, multimeter, waveform generator, and CAN bus checker.
Advanced Oscilloscope Capabilities
✔︎ 20MHz bandwidth, 80MS/s sample rate, 12-bit resolution, and 32M sample memory.
✔︎ Includes preset guided tests, reference waveforms, and auto-scaling.
Fast & Efficient Workflow
✔︎ 13” touchscreen, split-screen multitasking, Android 7.0, and multi-app operation.
✔︎ VIN barcode scanning, secure gateway access, and real-time updates.
Robust Vehicle Coverage
✔︎ Full-system diagnostics and programming for U.S., Asian, and European vehicles.
✔︎ Supports ADAS calibration, cloud-based programming, and bi-directional controls.
Specifications
| Operating System | Android 7.0 |
| Processor | Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
| Memory | 4GB RAM & 256GB On-board Memory |
| Display | 12.7 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen |
| Connectivity |
- WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) |
| Camera |
- Rear: 16 Megapixel, Autofocus with Flashlight |
| Sensors |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Power & Battery |
- 18000mAh 3.8 V lithium-polymer battery |
| Audio Input/Output |
- Microphone |
| Input Voltage |
12V/3A Adapter |
| Operating Temp. |
0 to 50°C (32 to 122°F) |
| Storage Temp. |
-20 to 60°C (-4 to 140°F) |
| Dimensions (WxHxD) |
366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34") |
| Weight |
2.18kg (4.81 lb.) |
| Protocols |
CANFD, DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
