EXCEPTIONAL SPEED
With the latest diagnostic protocols, the Zenith Z Series software runs extremely fast All-System Scans. Supporting OBI and the latest OBDII protocols. The Zenith allows for simple Read/Erase Codes to complex Actuation Tests with simultaneous live graph data.
Features You Want:

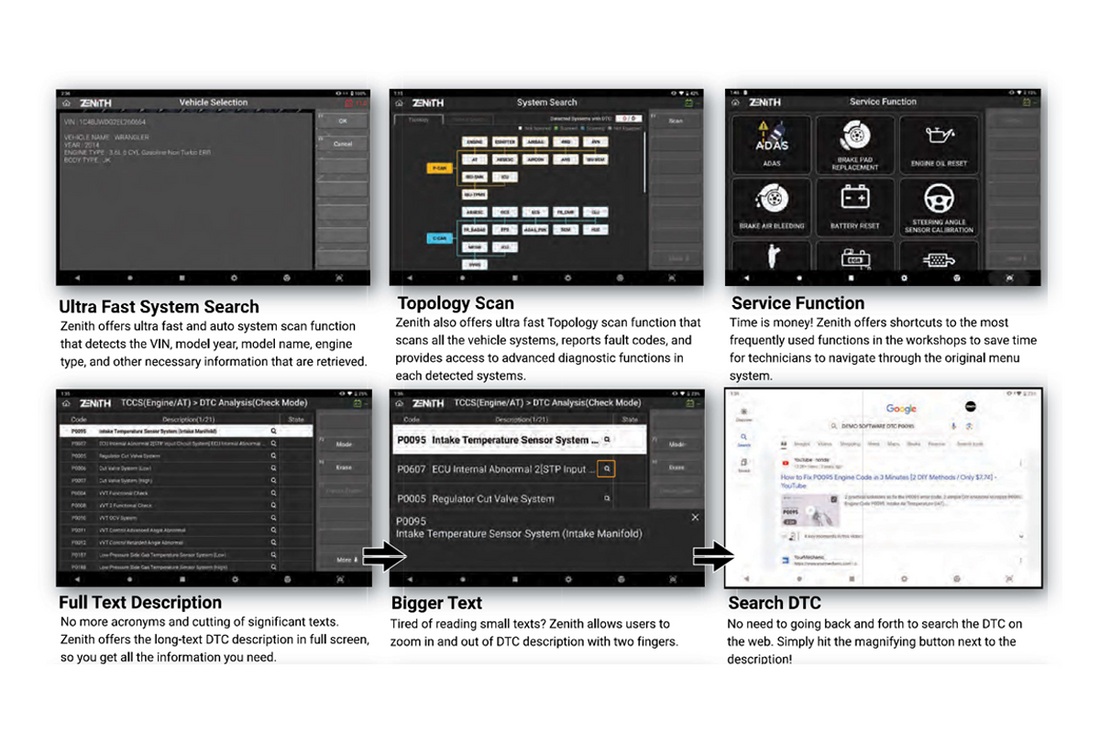

/ Ultra Fast System Search
/ Topology Scan
/ Service Functions
/ Full Text Descriptions
/ Bigger Text
/ Search DTCs

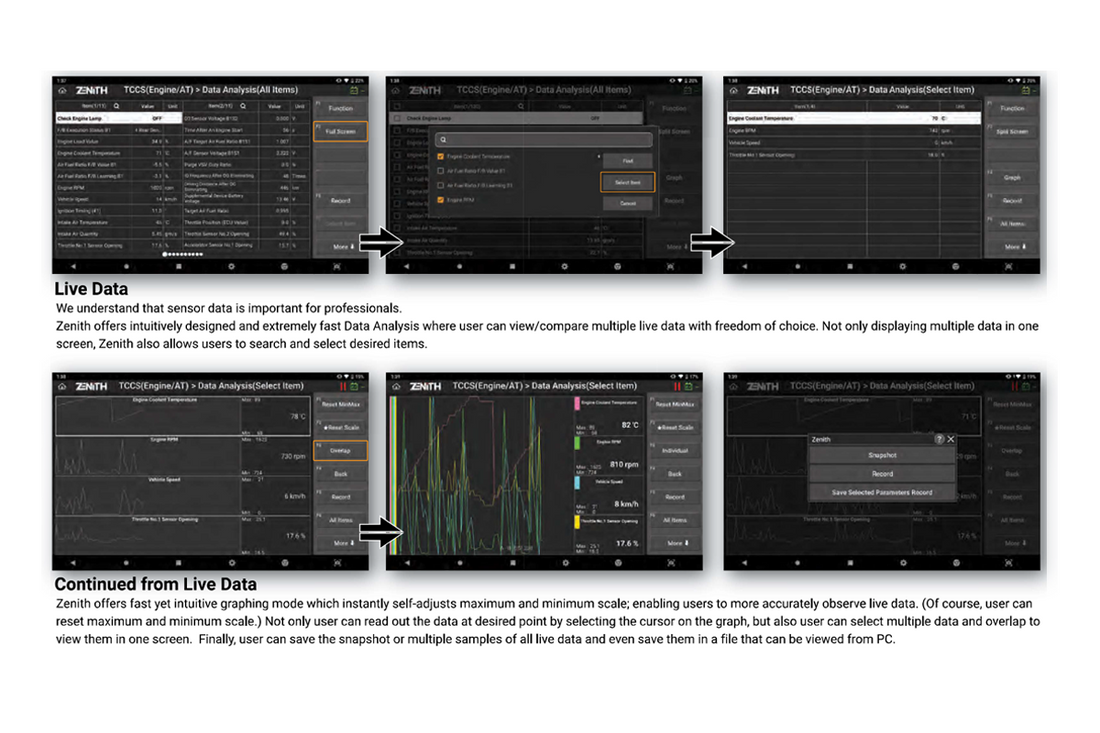

/ Live Data
/ Actuation Tests
/ Pre & Post Diagnostic Report -
"We provide fast & accurate software update on regular basis that matches the current needs from the market."
EZDAS USA
-
-
READY TO GET A HOLD OF THE FUTURE?
Purchase The Z5With the latest diagnostic protocols, the Zenith Z Series software runs extremely fast All-System Scans. Supporting OBI and the latest OBDII protocols. The Zenith allows for simple Read/Erase Codes to complex Actuation Tests with simultaneous live graph data.

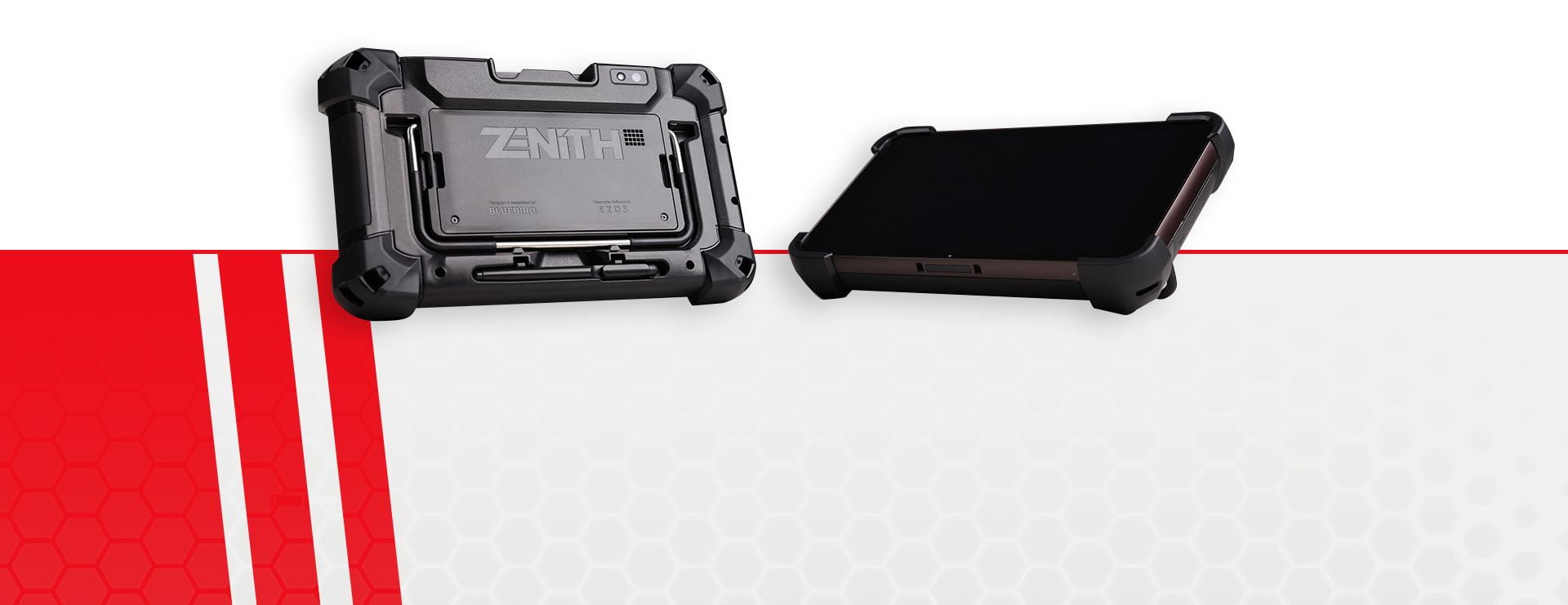

Need More Info About the Z5?
CPU
Octa Core Processor @ 2.0 GHz
Operating System:
Android 9
System Memory
Internal 32GB, RAM 3GB
External Memory
Micro SD Card
LCD
8.0 inch FHD (1920 x 1200)
Input Devices
Capacitive Touch Screen, 3 Hard Keys (Power, Volume +, Volume -)
Camera
8 megapixel auto-focus with LED Flash
Sound
Loud Speaker | 1 Microphone; 3.5 pi standard audio jack
Rechargeable Battery
Li-ion 3.8V 3200mAh
Operating Voltage
DC9 ~ 30V
Sensors
Ambient Light, Proximity, Gyroscope, Accelerometer
Dimensions
225x136x33mm
External Port
USB 1ea, USB C 1ea
Network
RJ45 Ethernet, WiFi 802.11 a/b/g/n, Bluetooth 4.2
CAN (High speed, Low speed, Single)
ISO-13400
ISO-11898
ISO-9141-CARB
KWP-2000
SAE-J1708
SAE-J1587
J1850 (PWM/VPW)
Melco Pull-Down
