Autel MaxiSys MS919

Only 2 left
SKU: AUTELMS919Tablet
Regular price $4,745.00 USD
Rendering loop-subscriptions

Our team is here to help answer any questions you have on tools like this or find the right package for your shop.

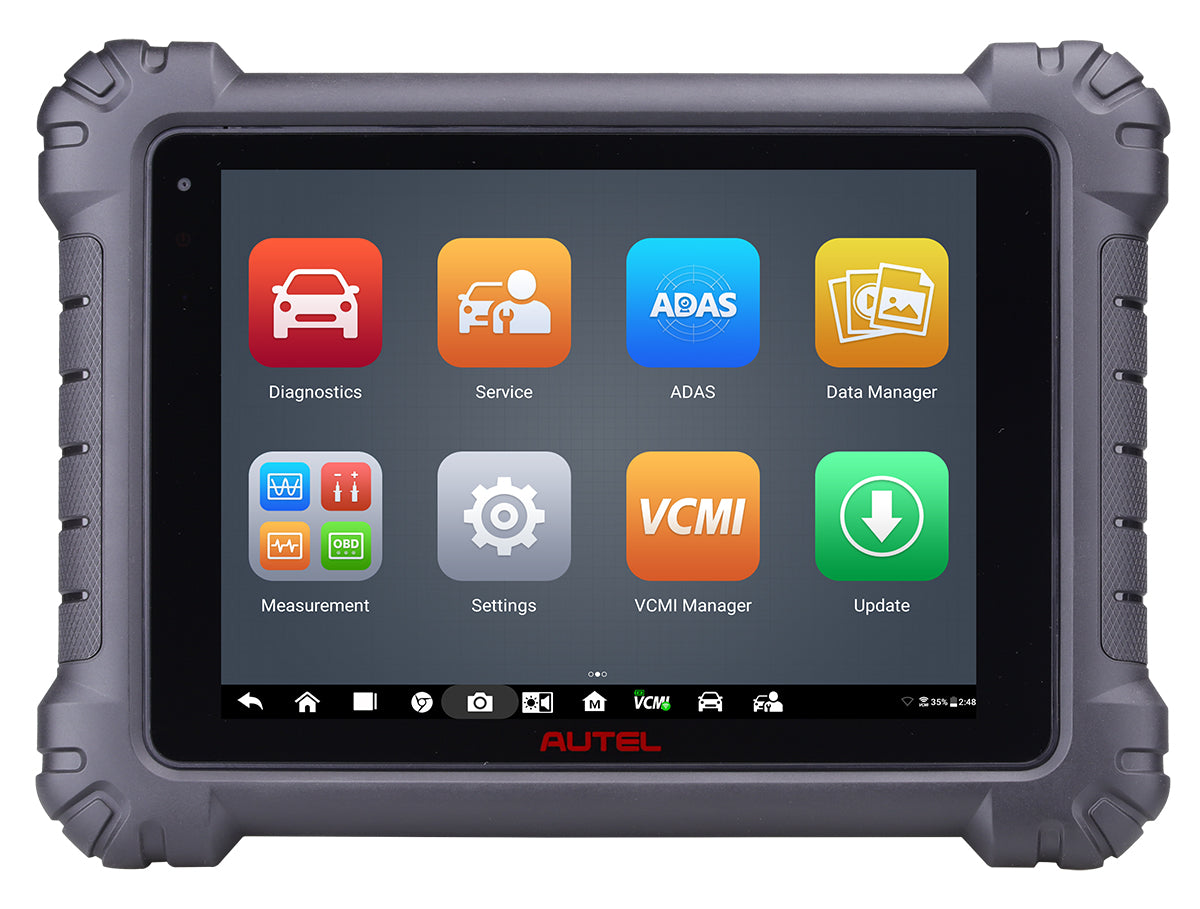

The MaxiSys MS919, a cutting-edge diagnostic tablet designed to enhance automotive diagnostics and repairs. With its 10-inch touchscreen tablet and Android 7.0 OS, this device offers a user-friendly interface powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad) for superior performance.

Key Features:

- 10-inch touchscreen tablet with Android 7.0 OS for intuitive operation
- Octa-core processor ensures smooth navigation and quick response times
- Substantial 128GB built-in memory for storing diagnostic data and repair information

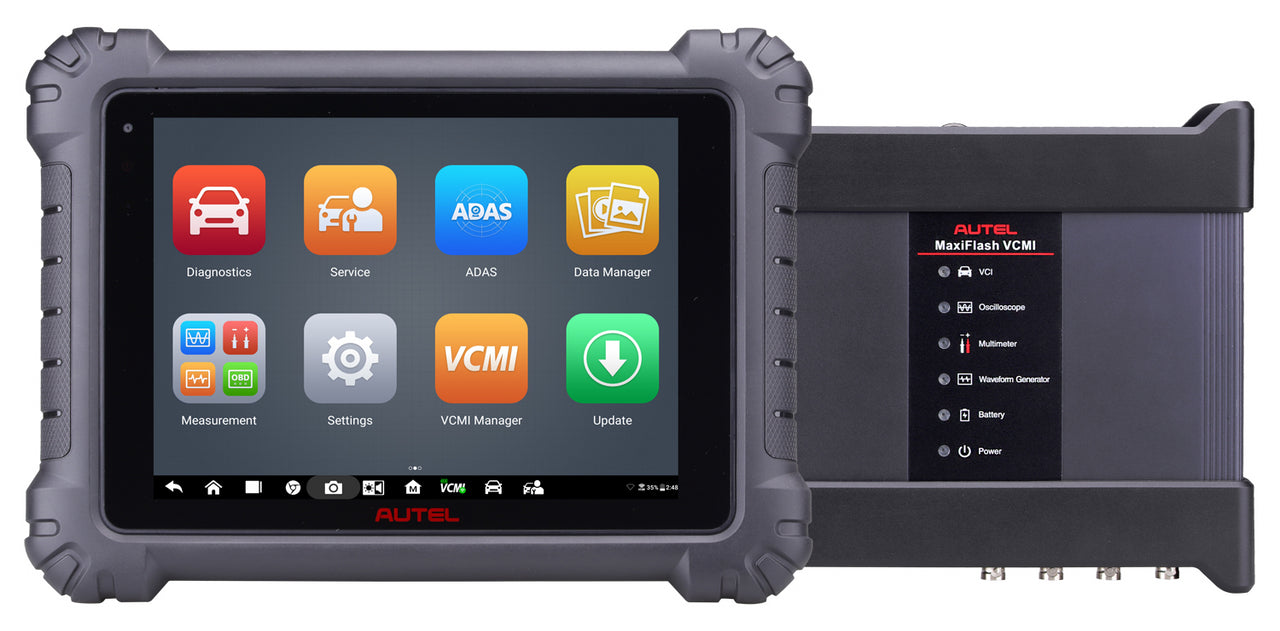

- New MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester
- Large library of preset guided tests and extensive waveform library for comprehensive diagnostics
- DTC and sensor specific test options for accurate testing
- Probe and component location diagrams for easy and correct connection

Operating System

Android 10.0ProcessorSamsung Exynos8895V octa-core

Processor

(2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)

Memory

4GB RAM & 128GB On-board Memory

Display

9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen

Connectivity

  • Wi-Fix2 (802.11 a/b/g/n/ac 2x2 MIMO)
  • BT v.2.1 + EDR
  • GPS
  • USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
  • HDMI 2.0
  • SD Card (Support up to 256GB)

Camera (rear)

  • Rear: 16 Megapixel, Autofocus with Flashlight
  • Front: 5.0 Megapixel

Sensors

Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output

  • Microphone
  • Dual Speakers
  • 3-Band 3.5 mm stereo/standard headset jack

Power and Battery

  • 15000mAh 3.8V lithium-polymer battery
  • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage

12V/3A Adapter

Operating Temperature

0 to 50°C (32 to 122°F)

Storage Temperature

-20 to 60°C (-4 to 140°F)

Dimensions

(WxHxD)304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")

Weight

1.66kg (3.66lb.)

Protocols

DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
