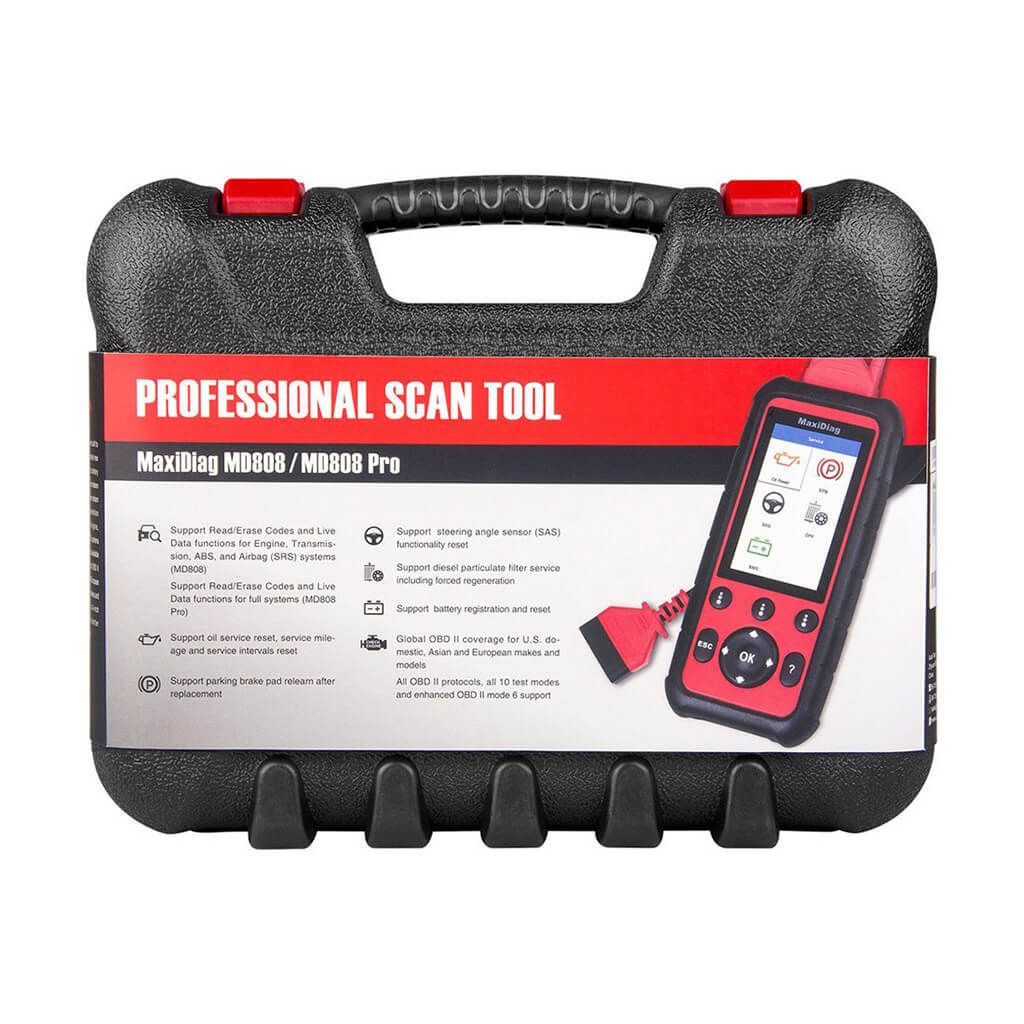

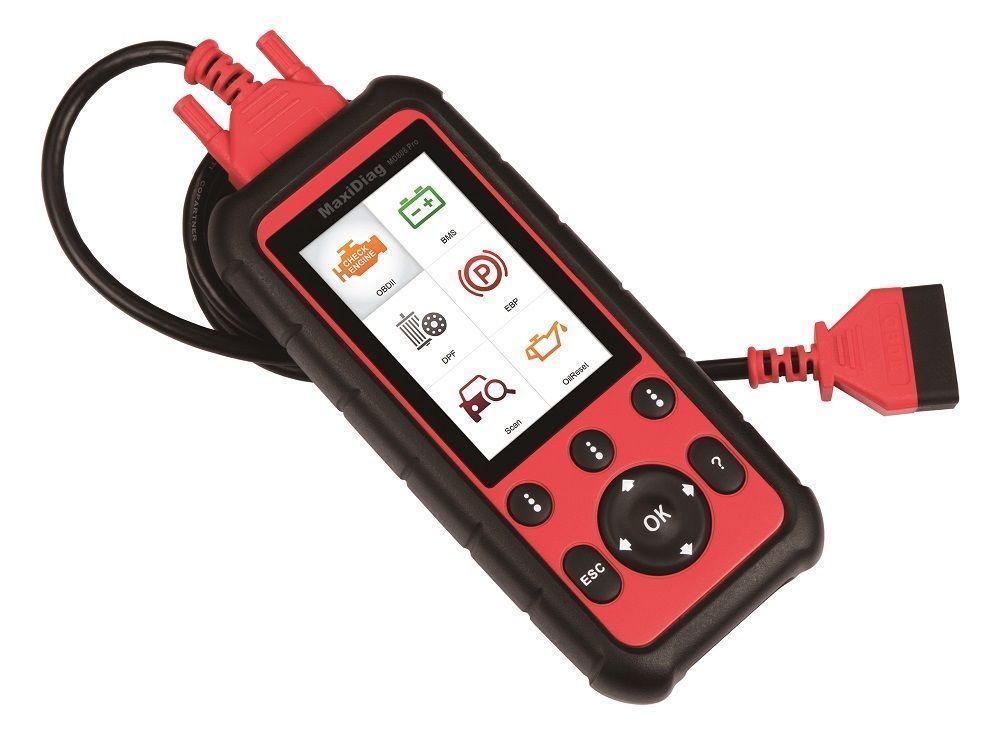

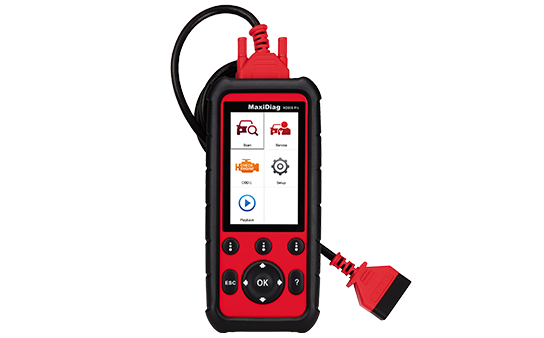

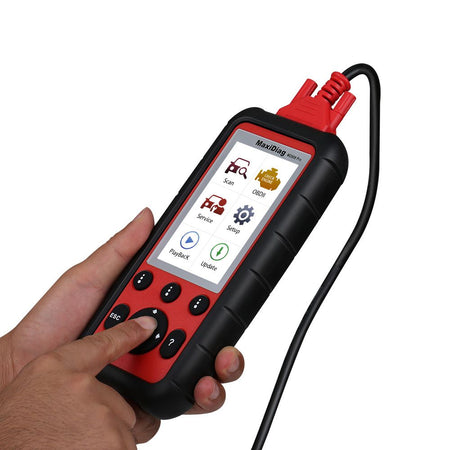

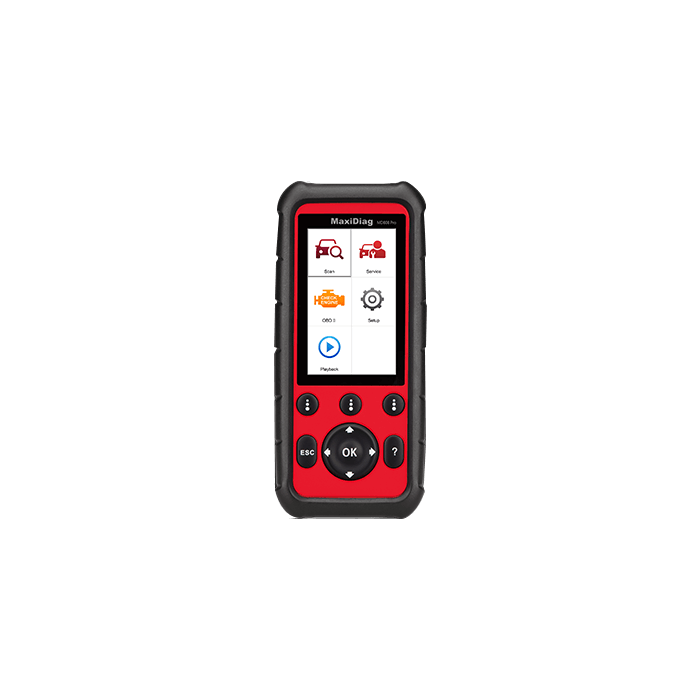

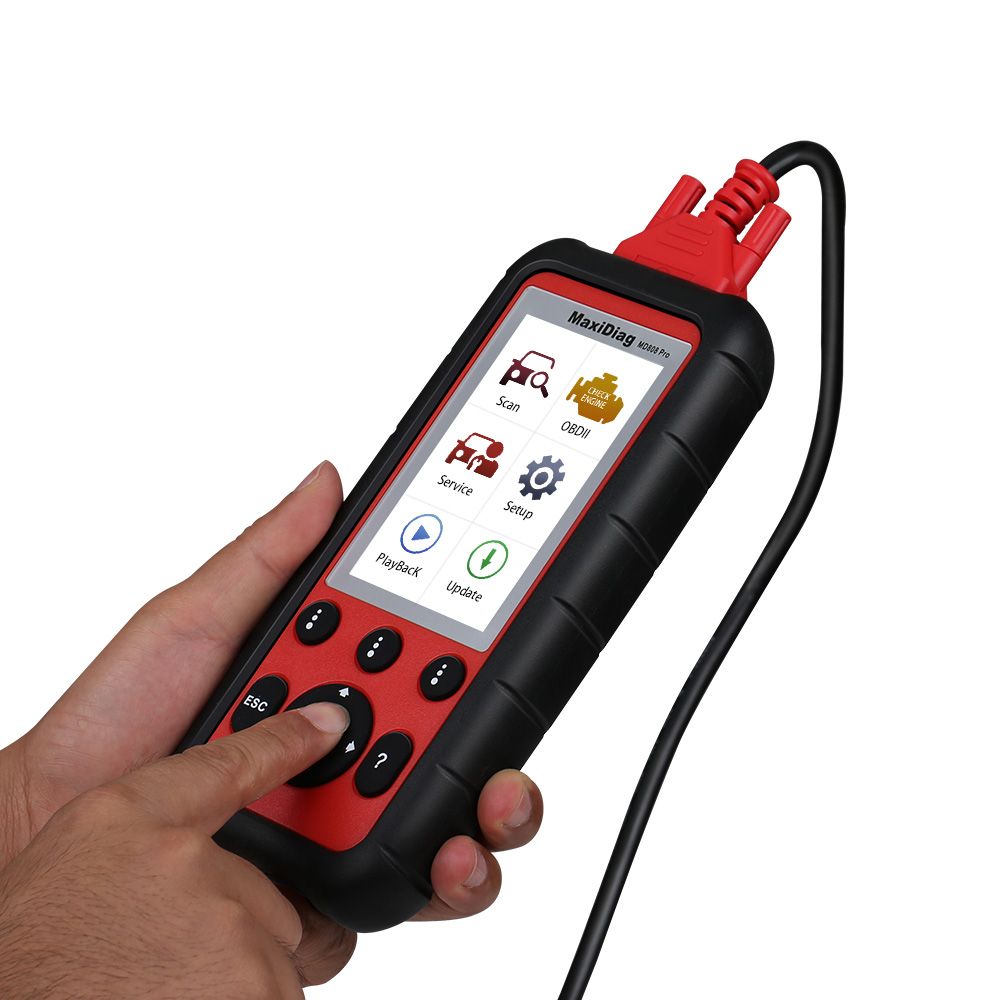

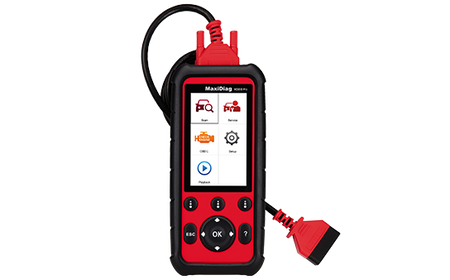

Autel MaxiDiag MD808 Pro
The MaxiDiag MD808 Pro is engineered to elevate your diagnostic capabilities to new heights. Packed with a wide array of functions including oil service reset, battery registration and reset, parking brake pad relearn, steering angle sensor relearn, and diesel particulate filter regeneration, the MD808 Pro grants access to ALL available modules for comprehensive diagnosis. Encased in a compact 4-inch handheld device, it stands out as the ultimate multifunctional scan tool in the market.
Key Features
- Comprehensive System Support: With support for Read/Clear Codes and Live Data functions for ALL systems, the MD808 Pro ensures thorough diagnosis across all vehicle modules.
- Versatile Diagnostic Functions: Perform trouble code reading and clearing, control and testing of BMS/Oil Reset/SRS/EPB/DPF systems, and much more.
- Maintenance Support: Facilitate oil service reset, battery registration and reset, and diesel particulate service including forced regeneration, ensuring optimal vehicle performance.
- Calibration and Adjustment: Reset steering angle sensor (SAS) functionality, relearn parking brake pad after replacement, and reset service mileage and intervals for precise calibration.
- Enhanced Diagnostic Capabilities: Conduct O2 monitor, on-board monitor, I/M readiness, and component testing, enabling comprehensive vehicle assessment.
- Convenient Reporting: Print diagnostic reports via PC connection for documentation and analysis.
- Wide Vehicle Coverage: Global OBD II coverage spans U.S. domestic, Asian, and European makes and models, ensuring compatibility across diverse vehicle types.
- Protocol Support: With support for all OBD II protocols, all 10 test modes, and enhanced OBD II mode 6, the MD808 Pro offers comprehensive diagnostic support for various vehicle systems.
Specifications
| Processor | ARM® Thumb® Processor (400 MHz) |
| Memory | 32MB, 166 MHz |
| Display |
4.0 inch LCD with 800×480 resolution |
| Connectivity | Mini USB: 2.0 Micro SD Card (16GB) |
| Power Consumption | 1.7 W |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating Humidity | 5% – 95% non-condensing |

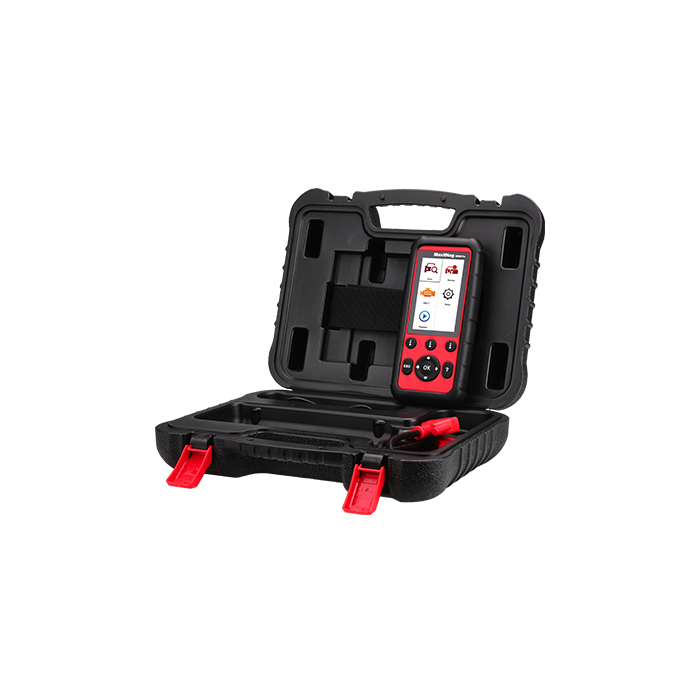

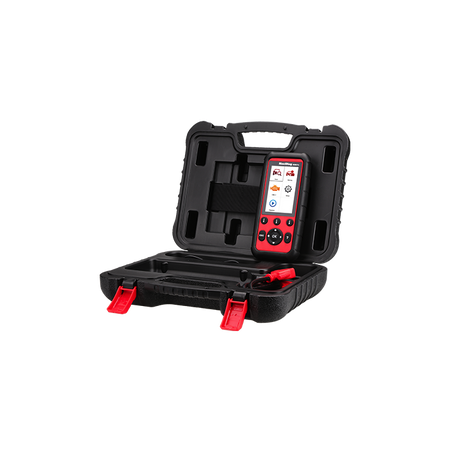

| Housing | Strong plastic housing with protective rubber boot |
| Dimensions (WxHxD) | 202 mm x 92 mm x 35 mm (8.35" x 3.62" x 1.4") |
| Weight | 313 g (0.69 lb.) |
