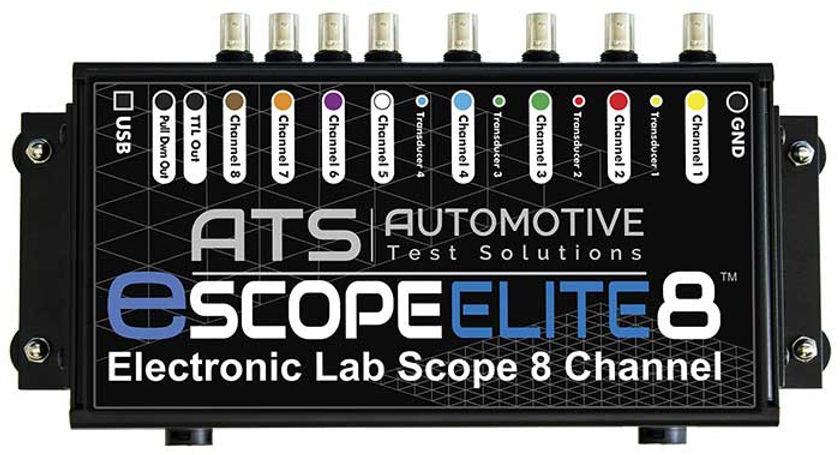

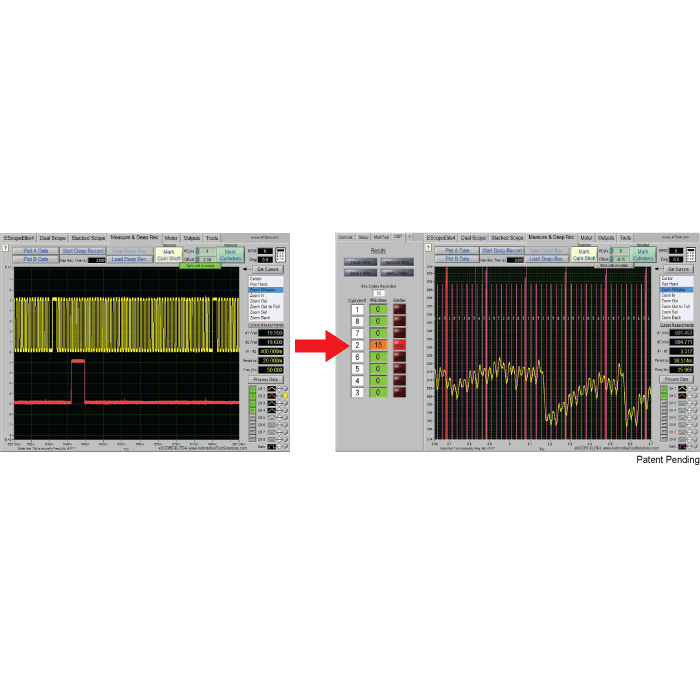

Unlock the potential of 8 channels with our advanced diagnostic tool, featuring revolutionary CKP misfire software:
- Precise Waveforms: Experience accurate and clean signal representation without the need for masking filters.
- Dual Time Base: Display two different frequencies simultaneously on a single screen with independent triggers and modes, providing the functionality of two scopes in one.
- Pull Down Circuit: Sink power from vehicle circuits to ground with controlled pulses, facilitating control of ignition coils, fuel injectors, and solenoids.
- TTL Output: Generate a 0-5V square wave signal directly from the scope to activate devices such as ignition coil drivers and test vehicle circuits.
- Automatic Test Lead Connection Detection: Easily identify good or bad connections with intuitive color-coded indicators.
- Instant Data Capture: Utilize the Deep Record function to capture extensive data without setup, enabling seamless zooming, signal manipulation, and waveform analysis.
- Automatic Voltage Attenuator: Simplify voltage adjustments with automatic voltage scaling based on the selected voltage range.
- Pressure Transducers Support: Drive up to four pressure transducers simultaneously with full pressure/vacuum conversions.
- Patented Overlay Technology: Enhance waveform analysis with our unique engine cycle grid overlay, perfectly complementing pressure transducer diagnostics.
Key Features:
- Comprehensive Data Capture: Benefit from ATS’ circular buffer system, ensuring no data is dropped even during intermittent faults, ensuring thorough diagnostics.- Precise Waveforms: Experience accurate and clean signal representation without the need for masking filters.
- Dual Time Base: Display two different frequencies simultaneously on a single screen with independent triggers and modes, providing the functionality of two scopes in one.
- Pull Down Circuit: Sink power from vehicle circuits to ground with controlled pulses, facilitating control of ignition coils, fuel injectors, and solenoids.
- TTL Output: Generate a 0-5V square wave signal directly from the scope to activate devices such as ignition coil drivers and test vehicle circuits.
- Automatic Test Lead Connection Detection: Easily identify good or bad connections with intuitive color-coded indicators.
- Instant Data Capture: Utilize the Deep Record function to capture extensive data without setup, enabling seamless zooming, signal manipulation, and waveform analysis.
- Automatic Voltage Attenuator: Simplify voltage adjustments with automatic voltage scaling based on the selected voltage range.
- Pressure Transducers Support: Drive up to four pressure transducers simultaneously with full pressure/vacuum conversions.
- Patented Overlay Technology: Enhance waveform analysis with our unique engine cycle grid overlay, perfectly complementing pressure transducer diagnostics.

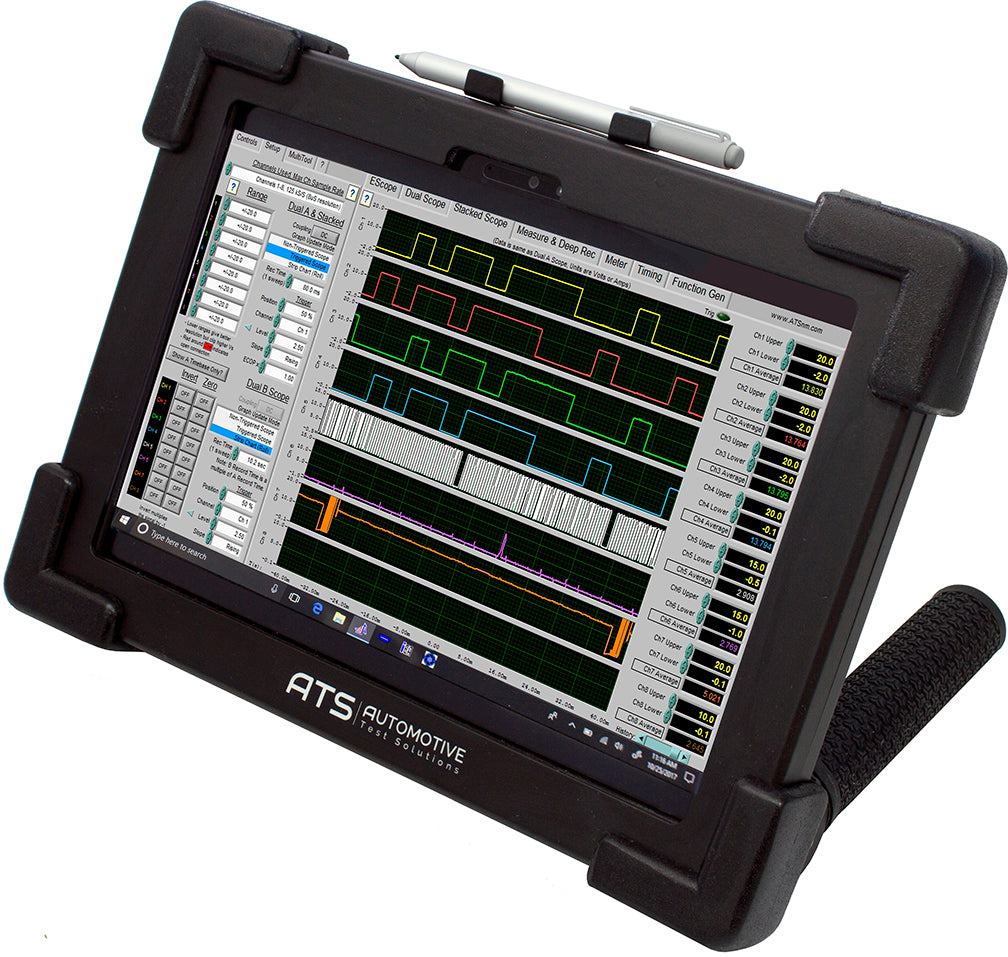

Surface Pro 7 Tablet Specifications:
- Operating System: Windows 10 Home 64-bit Operating System
- Processor: Quad-core 10th Gen Intel® Core™ i5-1035G4 Processor
- Hard Drive: 128 GB solid-state drive
- Graphics: Intel® Iris™ Plus Graphics
- Security: Firmware TPM, Enterprise-grade protection with Windows Hello face sign-in
- Memory: 8GB RAM
- Wireless: Wi-Fi 6: 802.11ax compatible Bluetooth Wireless 5.0 technology
- Ports: Full-size USB 3.0
- Screen: 12.3” PixelSense™ Display
- Cameras: 5.0MP front-facing camera with 1080p full HD video, 8.0MP rear-facing autofocus camera with 1080p full HD video
- Audio: Dual far-field Studio Mics, 1.6W stereo speakers with Dolby® Audio™
- Sensors: Ambient light sensor, Accelerometer, Gyroscope, Magnetometer
- Surface Pen: Bluetooth 5.0 wireless technology
- Screen Protection: 9H hardness, crystal clear tempered
- Warranty: 1-year limited hardware warranty
