Power Probe PPKIT04/PPT5VA01
Couldn't load pickup availability
Coming Soon! Pre-Order Now!
Call a Sales Rep Today to Learn More Here or Join The Waitlist Below 🔻

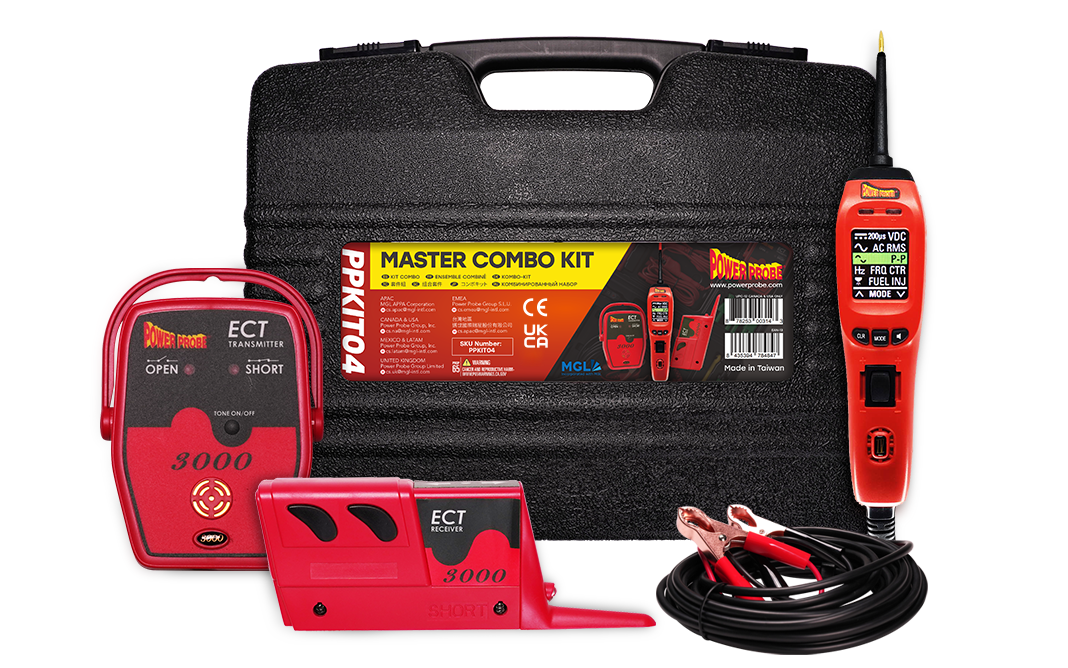

The Power Probe PPKIT04 is an essential diagnostic tool designed to offer unmatched versatility and precision for automotive professionals. This comprehensive kit includes the Power Probe IV and ECT3000, which perform various functions, including voltage measurements, circuit testing, and signal tracing.

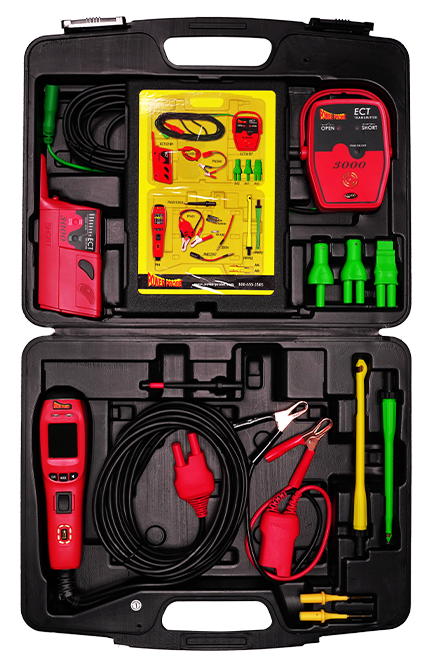

Built to last, the Power Probe PPKIT04 has various adapters and a durable carrying case, ensuring that all components are organized and protected. Whether pinpointing an electrical fault or testing components, this kit enhances productivity and accuracy in any automotive workshop.
Features and Benefits
Voltage & Signal Testing
Quickly check voltages and signal pulses across various components.
Advanced Circuit Testing
Locate opens and shorts with the ECT3000 to expedite repairs.
Component Activation
Directly activate electrical components within the vehicle.
Easy-to-Read Displays
Both tools feature clear displays for straightforward diagnostics.
Extended Reach
It comes with a range of leads and adapters to ensure accessibility.
Robust Construction
Engineered to withstand the demands of daily use in tough environments.

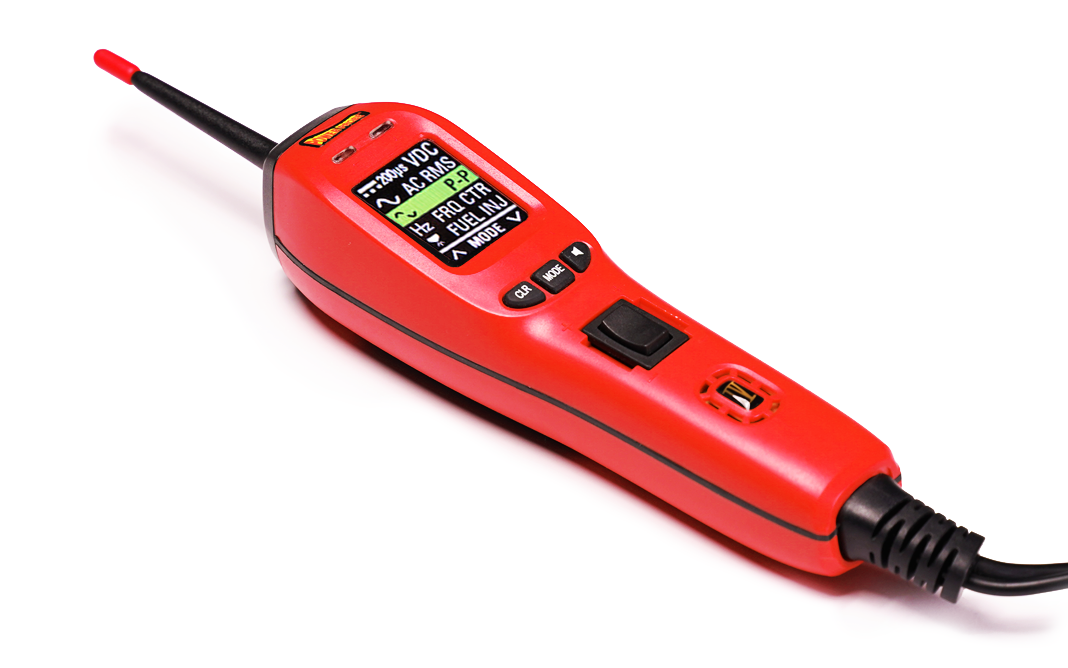

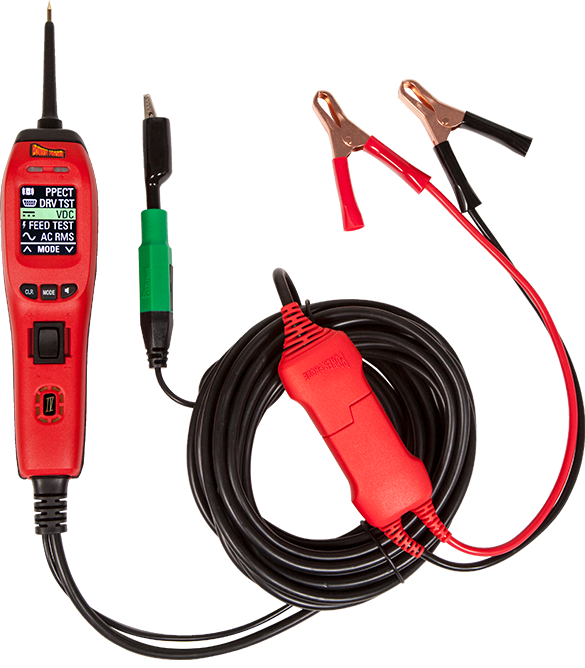

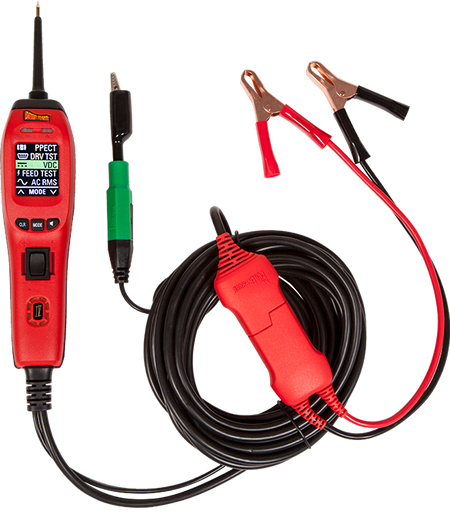

Specifications (PP4)
| Min Operating Voltage | 8 VDC |
| Max Operating Voltage | 30 VDC |
| Probe Tip Resistance to Ground | 450 Volts |
| Computer Safe | 0.1mA floating tip |
| Voltage Resolution | -99 to 99.9 V - 0.01V(10mV) |
| Voltage Measurement | -100 to 200 VDC / VAC |
| Glitch Capture | >380µS Min Pulse Width |
| Power Feed Test | < 30 mA |
| Resistance Measurement | Ohms to 10K Ohms |
| Frequency Measurement | 1Hz to 9999Hz |
| Driver Test |
50 Ohm Pull Up on Tip |
| ECT Signal Detection |
2 sec. |
| Fuel Injector Mode |
LED Flash @ Min 35V @ 100µS Pulse |
| Red LED Response |
Within 0.5V BATT V and < 10 Ohms |
| Green LED Response |
< 10. Ohms |
| Circuit Breaker |
8 AMP Thermal - Auto Reset |
| Breaker Trip Response |
8 Amps = No Trip |
| Operating Temp |
-20° (-4°F) to 50°C (122°F) |
| Storage Temp |
-40°C (-40°F) to 65°C (149°F) |
Specifications (ECT3000)
Transmitter |
|
| Min Operating Voltage | 6 VDC |
| Max Operating Voltage | 48 VDC |
| Working Current | <200mA |
| Working Frequency | 4KHz |
| Max Operating Temp | 50°C |
| Max Storage Temp | 70°C |
| Max Operating Relative Humidity | 80% (Non-condensation) |
| Max Storage Relative Humidity | 80% (Non-condensation) |
| Altitude | <2000m |
Receiver |
|
| Power Supply |
2 X 1.5V AAA |
| Working Current |
When not signal be detected <15.A |
| Power Consumption When Power Off |
<10uA |
| Max Operating Temp | 50°C |
| Max Storage Temp | 70°C |
| Max Operating Relative Humidity |
80% (Non-condensation) |
| Max Storage Relative Humidity |
80% (Non-condensation) |
| Altitude |
<2000m |
