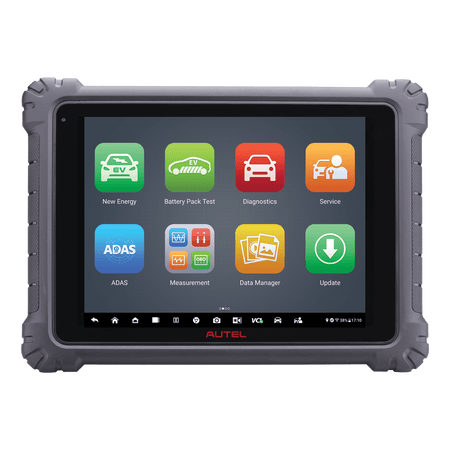

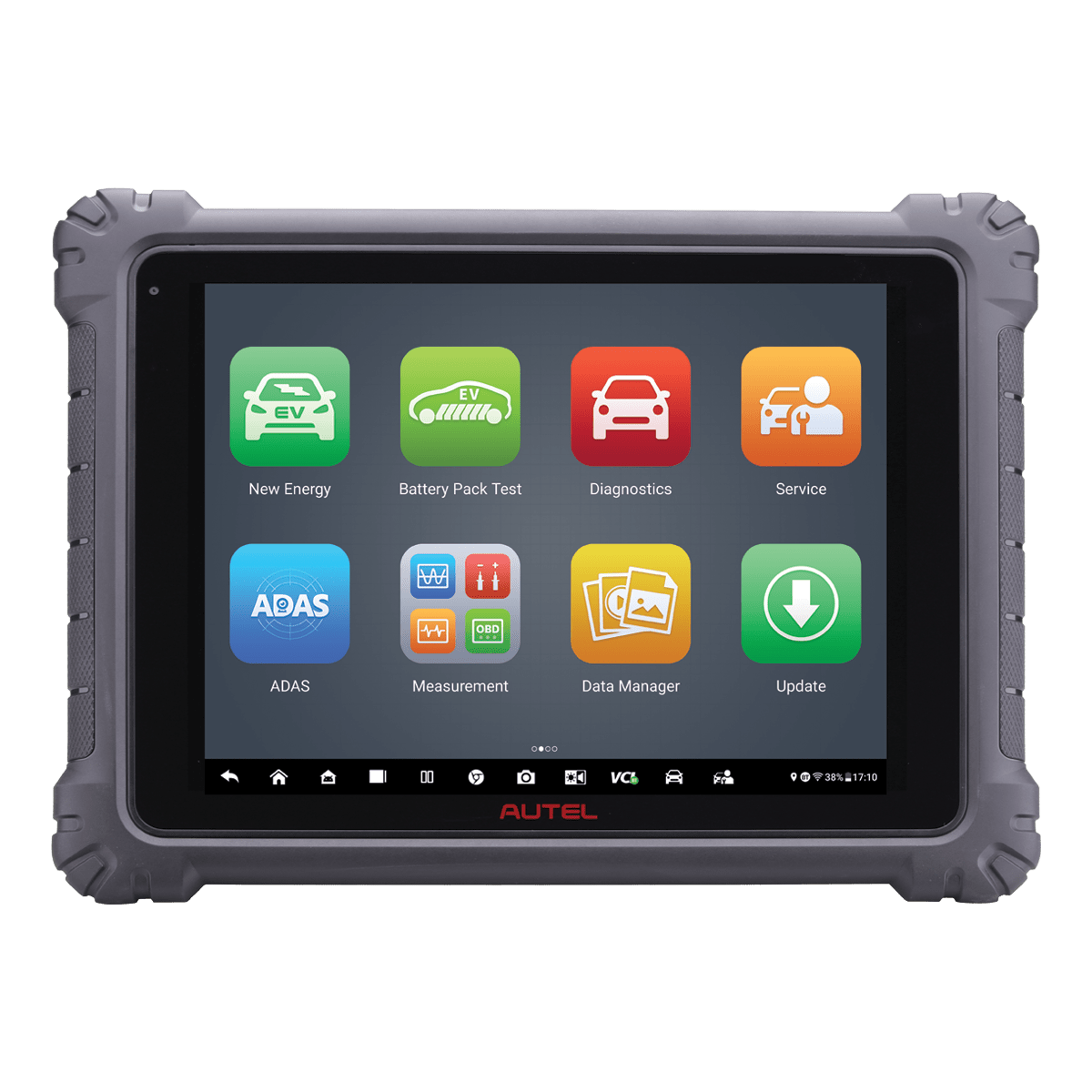

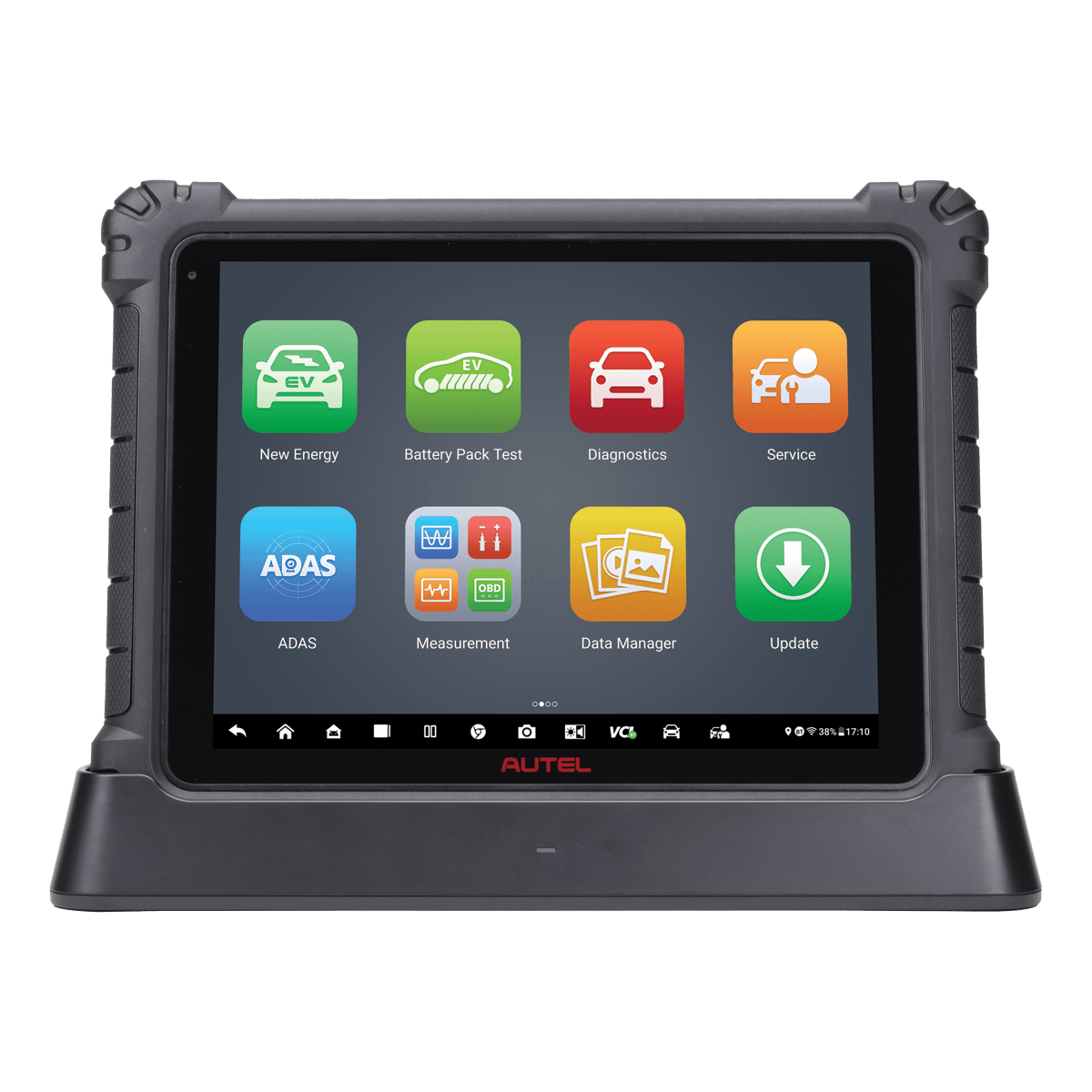

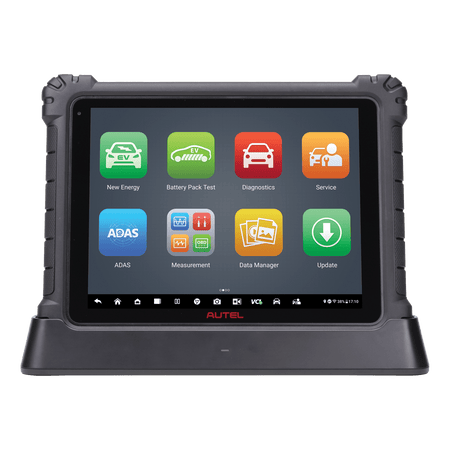

Autel MaxiSYS MSULTRAEV Tablet

Only 3 left
SKU: AutelMSULTRAEVTablet
Regular price $6,195.00 USD
Rendering loop-subscriptions

Our team is here to help answer any questions you have on tools like this or find the right package for your shop.

The MaxiSys Ultra EV represents the pinnacle in vehicle diagnostics, catering to a wide array of vehicles. It not only offers detailed battery pack analysis and advanced diagnostics for a comprehensive range of vehicle types but also facilitates efficient workshop management through cloud-based solutions. Enhanced by a large touchscreen interface, it delivers precise guidance for secure testing. This diagnostic tool is indispensable for modern automotive workshops, ensuring streamlined operations and effective vehicle care.

Features

  • Advanced Diagnostics: For electric, gas, diesel, and hybrid vehicles, including rapid EV system analysis.
  • Battery Analysis: Offers State of Charge and Health assessments through OBD or directly with special cables.

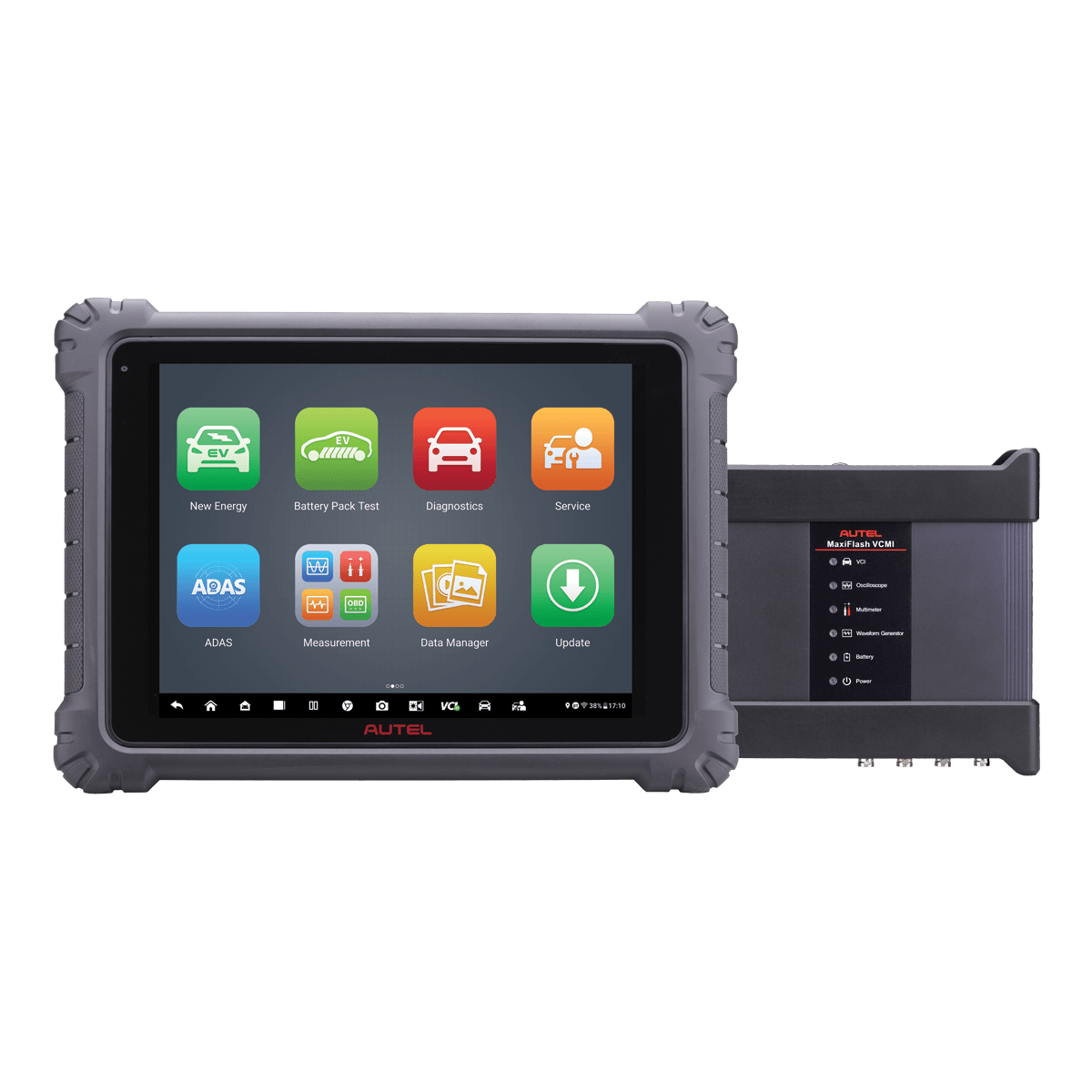

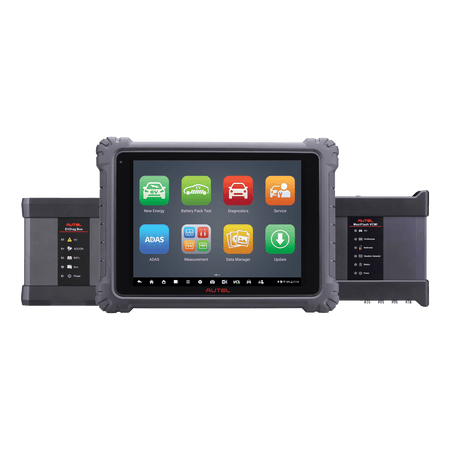

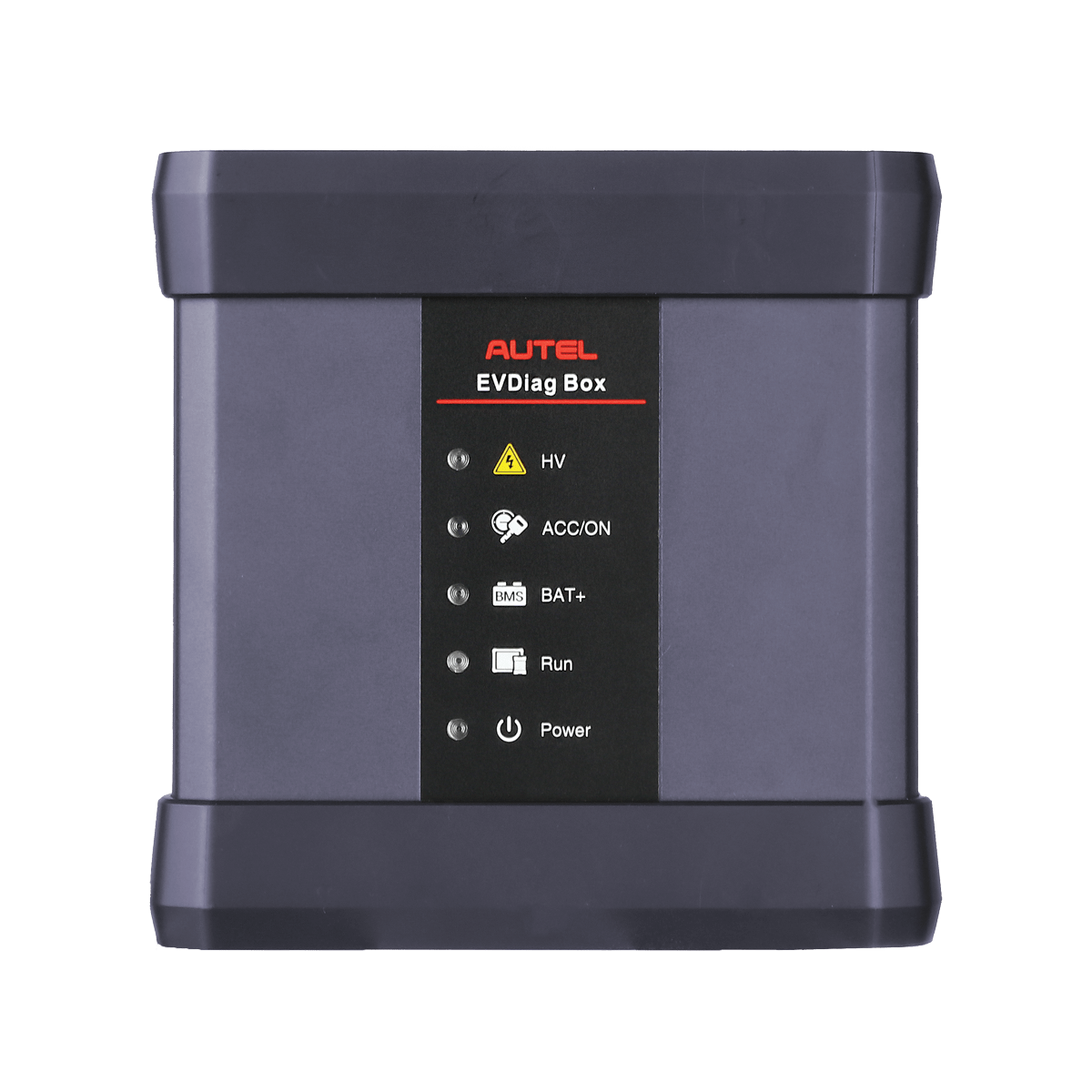

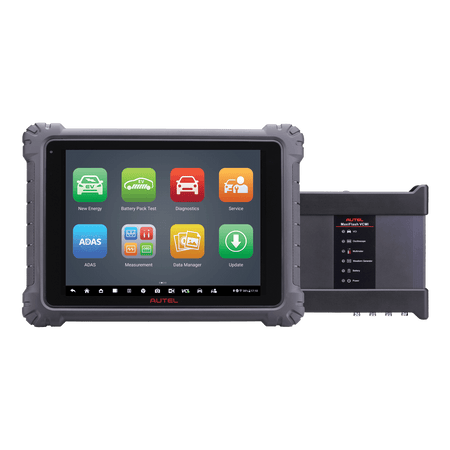

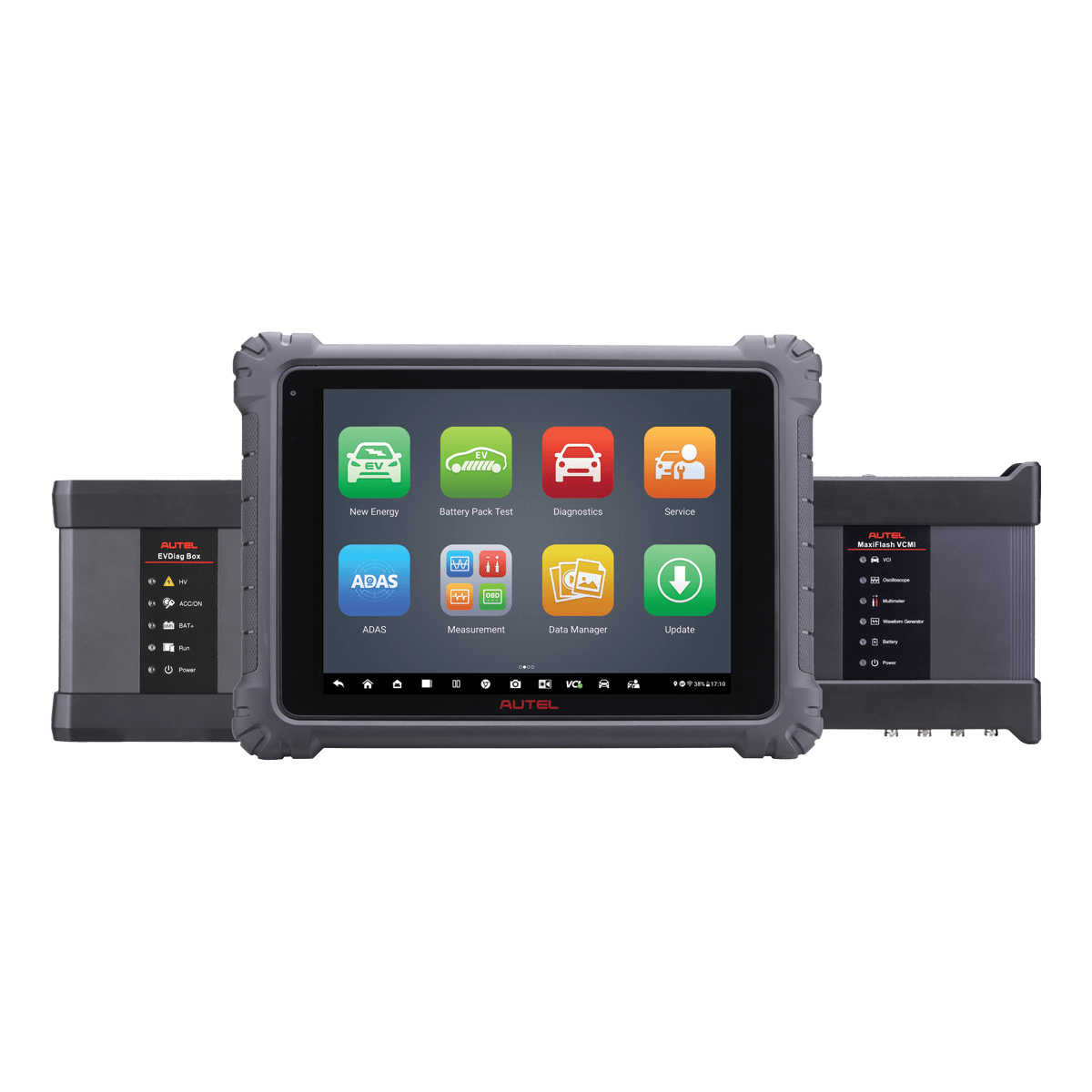

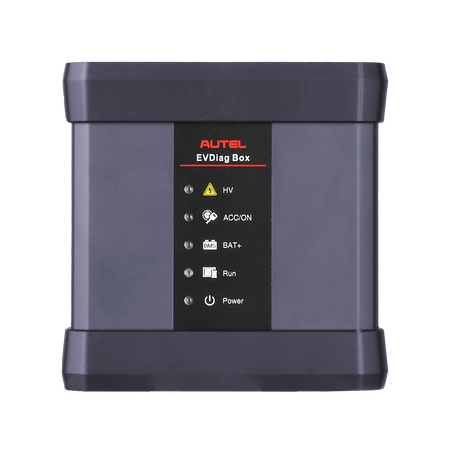

  • Comprehensive Tools: Includes the MaxiFlash VCMI device and EVDiag box for versatile testing.
  • Interactive Support: Data logging sessions with Autel Support for real-time troubleshooting.
  • Efficient Management: Facilitates workshop operations, integrating data files, customer information, and vehicle records.
  • Cloud Storage: For records, scanner data, and technician notes, ensuring organized and accessible information.

This system is tailored for a detailed understanding and safe testing of vehicle systems, enhanced by its large touchscreen display and connectivity options.

Specifications

Operating System: Android 7.0

Processor: Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)

Memory: 4GB RAM & 256GB On-board Memory

Display: 12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen

Connectivity

  • WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO)
  • BT v.2.1 + EDR
  • GPS
  • USB 2.0 (Two USB HOST Type A, one USB mini device)
  • HDMI 2.0
  • SD Card (Support up to 256GB)

Camera

  • Rear: 16 Megapixel, Autofocus with Flashlight
  • Front: 5 Megapixel

Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)Audio

Input/Output:

  • Microphone
  • Dual Speakers
  • 3-Band 3.5 mm stereo/standard headset jack

Power and Battery

  • 18000mAh 3.8 V lithium-polymer battery
  • Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage: 12V/3A Adapter

Operating Temperature: 0 to 50°C (32 to 122°F)

Storage Temperature: -20 to 60°C (-4 to 140°F)

Dimensions: (W x H x D)366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″)

Weight: 2.18kg (4.81 lb.)

Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
